1 Features

1• VOUT Range: 0.8 V to 3.6 V

• Ultralow VIN Range: 0.8 V to 5.5 V

• VBIAS Range: 2.7 V to 5.5 V

• Low Dropout: 120 mV (Typical) at 3 A

• Power-Good (PG) Output Allows Supply

Monitoring or Provides a Sequencing Signal for

Other Supplies

• Stable with Any Output Capacitor ≥ 2.2 μF

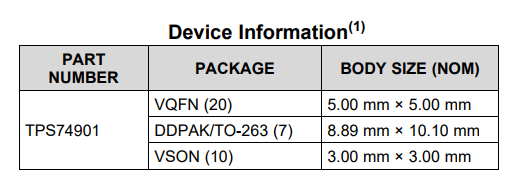

• Packages:

– Small, 3-mm × 3-mm × 1-mm VSON

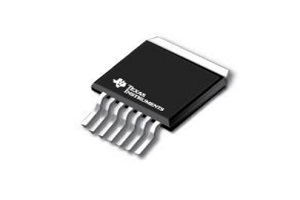

– 5-mm × 5-mm × 1-mm VQFN and DDPAK-7

• Active High Enable

2 Applications

• FPGA Applications

• DSP Core and I/O Voltages

• Servers

• Post-Regulation Applications

• Applications with Special Start-Up Time or

Sequencing Requirements

3 Description

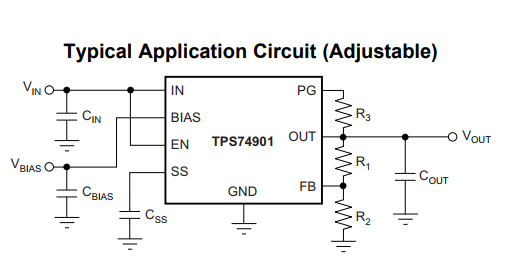

The TPS74901 low-dropout (LDO) linear regulator

provides an easy-to-use, robust power management

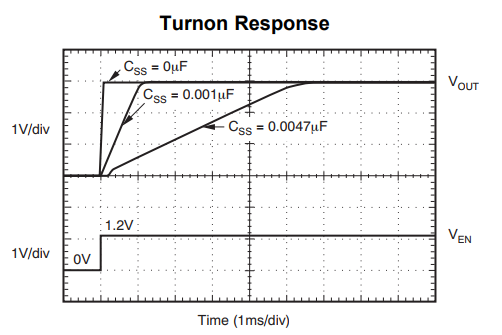

solution for a wide variety of applications. Userprogrammable

soft-start minimizes stress on the input

power source by reducing capacitive inrush current

during start-up. The soft-start is monotonic and wellsuited

for powering many different types of

processors and ASICs. The enable input and powergood

output allow easy sequencing with external

regulators. This complete flexibility permits the user to

configure a solution that meets the sequencing

requirements of FPGAs, DSPs, and other

applications with special start-up requirements.

TPS74901KTWRTPS74901KTWRTPS74901KTWR
1功能

VOUT范围:0.8 V - 3.6 V

•超低VIN量程:0.8 V - 5.5 V

•VBIAS Range: 2.7 V - 5.5 V

•低辍学率:120mv(典型)在3a

•电源良好(PG)输出允许供应

监测或提供测序信号

其他物资

•任何输出电容器≥2.2μF稳定

•包:

——小,3毫米×3毫米×1毫米VSON

——5毫米×5毫米×1毫米VQFN DDPAK-7

•主动高启用

2应用程序

•FPGA的应用程序

•DSP和I/O电压

•服务器

•Post-Regulation应用程序

•具有特殊启动时间或

测序要求

3描述

TPS74901低辍学率线性调节器

提供易于使用的、健壮的电源管理

解决方案的广泛应用。Userprogrammable

软启动化输入的压力

通过减小电容涌流的电源

在启动。软启动是单调和非常适合

为许多不同类型的

处理器和asic。启用输入和powergood

输出允许容易的测序与外部

监管机构。这种完全的灵活性允许用户这样做

配置符合顺序的解决方案

fpga、dsp等要求

具有特殊启动要求的应用程序。
