FEATURES • Peripherals

234• RF/Layout – Powerful Five-Channel DMA

– 2.4-GHz IEEE 802.15.4 Compliant RF – IEEE 802.15.4 MAC Timer, General-Purpose

Transceiver Timers (One 16-Bit, Two 8-Bit)

– Excellent Receiver Sensitivity and – IR Generation Circuitry

Robustness to Interference – 32-kHz Sleep Timer With Capture

– Programmable Output Power Up to 4.5 dBm – CSMA/CA Hardware Support

– Boost-Mode TX at 7 dBm – Accurate Digital RSSI/LQI Support

– Very Few External Components – Battery Monitor Comparator

– Only a Single Crystal Needed for – Random Number Generation

Asynchronous Networks

– AES Security Coprocessor

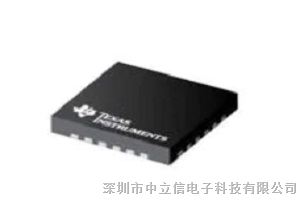

– Space-Saving 6-mm × 6-mm QFN40

– Two Powerful USARTs With Support for

Package UART and SPI

– Suitable for Systems Targeting Compliance

– I

2C Interface

With Worldwide Radio-Frequency

– 23 General-Purpose I/O Pins Regulations: ETSI EN 300 328 and EN 300

440 – Watchdog Timer (Europe), FCC CFR47 Part 15 (US), and

ARIB STD-T-66 (Japan) • Development Tools

– Pin- and Software-Compatible With the – CC2533 Remote Control Development Kit

CC2530Fxxx Series for RF4CE

• Low Power – CC2533 Development Kit

– Active-Mode RX (CPU Idle): 25 mA – CC2533EMK Evaluation Modules

– Active Mode TX at 0 dBm (CPU Idle): – SmartRF™ Software

28.5 mA – Packet Sniffer

– Power Mode 1 (4 ms Wake-Up): 0.2 mA – IAR Embedded Workbench™ Available

– Power Mode 2 (Sleep Timer Running): 1 mA

– Power Mode 3 (External Interrupts): 0.5 mA APPLICATIONS

• ZigBee™ RF4CE Remote Control Target and – Wide Supply-Voltage Range (2 V–3.6 V)

Device

• Microcontroller

• 2.4-GHz IEEE 802.15.4 Systems Based on

– High-Performance and Low-Power 8051 TIMAC or SimpliciTI™ Network Protocol

Microcontroller Core With Code Prefetch • Consumer Electronics

– 64- or 96-KB In-System-Programmable • Electronic Shelf Labeling
