3 Description

The TPS370x-xx family of microprocessor supplyvoltage

supervisors provide circuit initialization and

timing supervision, primarily for DSP and processorbased

systems.

During power-on, RESET is asserted when the

supply voltage VDD becomes higher than 1.1 V.

Thereafter, the supply voltage supervisor monitors

VDD and keeps RESET active as long as VDD remains

below the threshold voltage VIT+. When the supply

voltage drops below the threshold voltage VIT–

, the

output becomes active (low) again. No external

components are required. All the devices of this

family have a fixed-sense threshold voltage VIT– set

by an internal voltage divider.

The product spectrum is designed for supply voltages

of 2.5 V, 3 V, 3.3 V, and 5 V. The circuits are

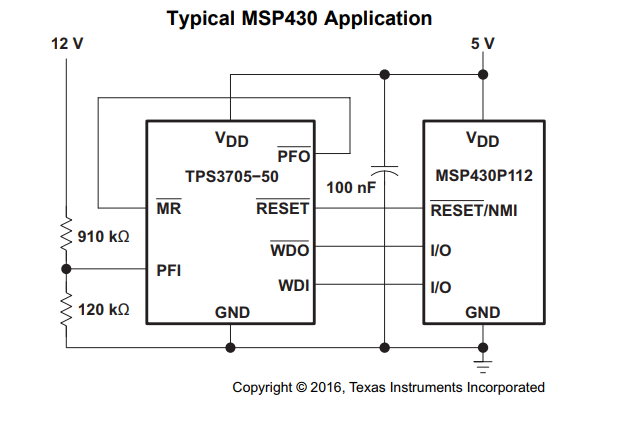

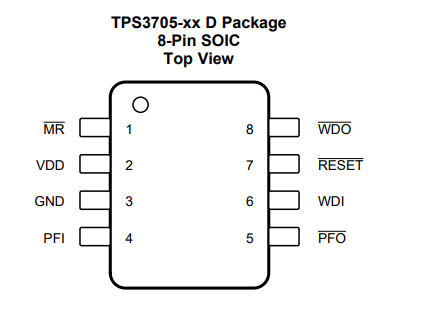

available in either 8-pin MSOP or standard SOIC

packages. The TPS370x-xx devices are

characterized for operation over a temperature range

of −40°C to 85°C.

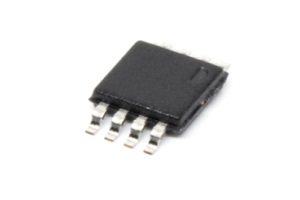

TPS3705-30DRTPS3705-30DRTPS3705-30DRTPS3705-30DR

1功能

•固定延迟的开机复位发电机

200ms时间(不需要外部电容)

•精密电源电压监控器:2.5 V, 3v，

3.3 V, 5v

•通过与MAX705兼容的pin - in- pin

MAX708系列

•综合看门狗时间(仅TPS3705-xx)

•电源故障或电池不足时的电压监视器

警告

•供应电流50μA

•8针MSOP和8针SOIC包装

•温度范围:-40°C到85°C

2应用程序

•使用DSPs、微控制器或

微处理器

•工业设备

•可编程控制

•汽车系统

•便携式或电池供电设备

•智能仪器

•无线通信系统

•笔记本电脑或台式电脑

3描述

TPS370x-xx系列微处理器提供电压

监控器提供电路初始化和

定时监控，主要针对DSP和处理器

系统。

输出再次变为活动(低)。没有外部

组件是必需的。所有这些装置

家庭有一个固定的感应阈值电压VIT - set

通过内部分压器。

产品频谱是为电源电压设计的

2。5 V, 3 V, 3。3 V, 5 V。电路是

可在8针MSOP或标准SOIC

包。TPS370x-xx设备是

具有在温度范围内工作的特点

−40°C到85°C。
